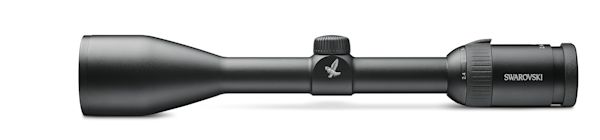

Z5 2.4-12x50

Its high-luminosity optics mean you can also hunt at dawn and dusk and in poor light.

Mount type
Reticle
$1,249.00Last 2 items in stock
Free shipping above 95.00 $
Delivery in 3-7 working days
Return guarantee

What to consider when choosing your riflescope

Light transmission

This describes the amount of visible light that can pass through an optical system and is expressed as a percentage. The objective lens diameter specifies how much light can enter the optics. This makes it a key factor in an instrument’s performance, for example, in twilight. The bigger the objective lens diameter, the more light the objective lens can capture. The darker the surroundings, the larger the objective lens diameter needs to be. Check the precise product name as the number after the ‘x’ specifies the objective lens diameter in millimeters. A device with a suffix of 2-16x50, for example, has an objective lens with a diameter of 50 mm.

Magnification

The magnification specifies how much closer an object appears to be. The higher the magnification, the closer the object appears and the smaller the field of view. Rifle scopes usually have variable magnification (zoom), e.g. 2-16x. This means it is possible to zoom continuously from 2x to 16x magnification.

Impact point adjustment

To always be able to aim at the sighting point from different distances, the reticle is adjusted so that the impact point matches the aiming point. The aiming point is the point on the object you want to target. The reticle adjustment in the turrets on the rifle scope is operated using the click settings. Each click changes the impact point.

Adjustment range

The adjustment range describes the range within which you can correct the impact point by adjusting the reticle without moving the device. The adjustment range is specified in relation to both the elevation and the windage adjustment.

We measure the adjustment range in meters per 100 meters (m/100m) or inches per 100 yards (in/100yd). Other manufacturers choose to specify this in MRAD (milliradians) or MOA (minutes of angle).

Light transmission

This describes the amount of visible light that can pass through an optical system and is expressed as a percentage. The objective lens diameter specifies how much light can enter the optics. This makes it a key factor in an instrument’s performance, for example, in twilight. The bigger the objective lens diameter, the more light the objective lens can capture. The darker the surroundings, the larger the objective lens diameter needs to be. Check the precise product name as the number after the ‘x’ specifies the objective lens diameter in millimeters. A device with a suffix of 2-16x50, for example, has an objective lens with a diameter of 50 mm.

SO LIGHT, SO GREAT.

Hunter adjusts his Ballistic turret on the Z5
Swarovski Optik Z5(i) hunter aiming sitting in a wood
More Info
Scope of delivery
  • Transparent scope covers
  • BT tool
  • Microfiber cloth
Product description

Its high-luminosity optics mean you can also hunt at dawn and dusk and in poor light.

Technical specification

ring-mount
BRH
PLEX
2.4-12x
magnification
23-50 mm
effective-objective-lens-diameter-mm
10-4.1 mm
exit-pupil-diameter-mm
95 mm
exit-pupil-distance-mm-eye-relief
45.9-9 ft/100 yds
field-of-view-ft-100-yds-m-100-m
8.7-1.75 °
field-of-view-degrees
21.5 °
field-of-view-apparent-degrees
-3 to +2 dpt
dioptric-compensation-dpt
92 %
light-transmission
-
parallax-correction-yds-m
0.25 / 7
impact-point-corr-per-click-in-100-yds-mm-100-m
90/50 / 2.5/1.4
max-elevation-windage-adjustment-range-in-100-yds-m-100-m
M 52x0.75
objective-filter-thread
13.1 in
length-in-mm
16.2 oz
weight-oz-g
1 in
central-tube-diameter-in-mm
-4 to +131 °F
functional-temperature
-22 to +158 °F
storage-temperature
13 ft / 4 m water depth (inert gas filling)
submersion-tightness
