ATS objective module

The ATS 65 is a lightweight and handy spotting scope that offers high optical quality, despite its compact dimensions. With its angled view the ATS 80 enables comfortable observation for hours. The 80 mm objective lens diameter provides higher detail recognition, while a wider exit pupil ensures brighter images and comfortable viewing even in poor lighting conditions.

Effective objective lens diameter
€2,630.00
Free shipping above 75 EUR
Delivery in 3-7 working days
30 days return policy

What to consider when choosing your spotting scope

Objective lens diameter

The objective lens diameter specifies how much light can enter the optics. This makes it a key factor in an instrument’s performance, for example, in twilight. The bigger the objective lens diameter, the more light the objective lens can capture. The darker the surroundings, the larger the objective lens diameter needs to be. Check the precise product name as the number after the ‘x’ specifies the objective lens diameter in millimeters. For example, a device with the suffix 10x42 has an objective lens with a diameter of 42 mm.

More Info
Product description

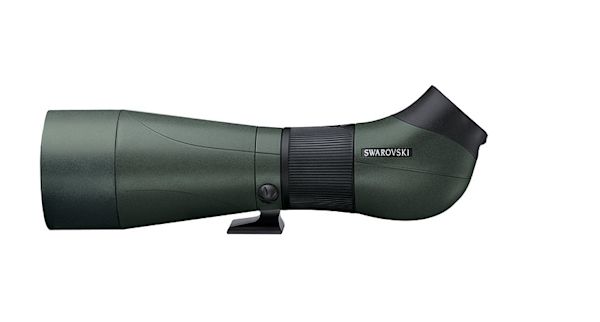

With its angled view the ATS 80 enables comfortable observation for hours. The 80 mm objective lens diameter provides higher detail recognition, while a wider exit pupil ensures brighter images and comfortable viewing even in poor lighting conditions.

Technical specification

65 mm80 mm
Effective objective lens diameter
17 mm
Eye relief
3 m5 m
Shortest focusing distance
> 5 dpt
Diopter correction at ∞
M 67 x 0.75M 82 x 0.75
Objective filter thread
25-50x20-60x
Magnification
2.6-1.3 mm3.3-1.1 mm3.2-1.6 mm4.0-1.3 mm
Exit pupil diameter
42-27 m/1000m36-20 m/1000m
Field of view m at 1000m / ft at 1,000yds
2.4-1.55 °2.1-1.1 °
Field of view degrees
2.4-1.55 °2.1-1.1 °
Field of view for eyeglass wearers in degrees
60-70 °40-65 °
Field of view apparent
85 %86 %
Light transmission of total product
750-1500 mm600-1800 mm
Focal length with TLS APO in mm.
-25 to +55 °C
Functional temperature
-30 to +70 °C
Storage temperature
13 ft (4m) water depth (inert gas filling)
Submersion tightness
1405 g1370 g1675 g1640 g
Weight angled view
370 mm400 mm
Length with angles view in mm.

Compare products

ATS 80 without Okular ID 375705ATS objective module
80Effective objective lens diameter
Price from €1,850
